数据库系统概论

关系代数(Relational Aigebra): Union difference insersection cartesian product (卡迪尔积)(cross product) select operation projection operation RA's join Join Theta Join(θ Join) equi join(=) natural join(*) example (?) Outer Joins (Special Case of EquiJoin) left outer join right outer join full outer join Division View Specifying constraints not null constraint unique constraint primary key constraint Foreign key constraint check constraint default constraint alter table add constraint index select statement alias distinct between or not between (range search) in or not in (set membership search) like or not like (pattern match search) escape character is NULL or is not NULL ordered by aggregate function (聚合函数) group by clouse having clouse Multiple table (sql多表) inner join outer join Left outer join Right outer join Full outer join Alias date format trunc last_day and next_day set operation union intersect Minus sub queries comparison-operator exists and not exists insert update delete scalar function(标量函数) Trivial FD (平凡函数依赖): 数据库函数依赖和范式: attribute clouse (computing F+) super key and primary chase判断无损连接性算法 ER图 锁

关系代数(Relational Aigebra):

链接一
链接二

Union

在这里插入图片描述
在这里插入图片描述

Duplicate tuples will not appear in the output as (D-3) both in R and S.
R and S must satisfy the following rules:

Rule 1: have the same degree Rule 2:domain of the ith attribute both of R and S must be same

difference

在这里插入图片描述
在这里插入图片描述

semantics: R-S is the relation containing all tuples in R that do not appear in S.

insersection

R intersection S returns all tuples that appears both in R and S
在这里插入图片描述在这里插入图片描述

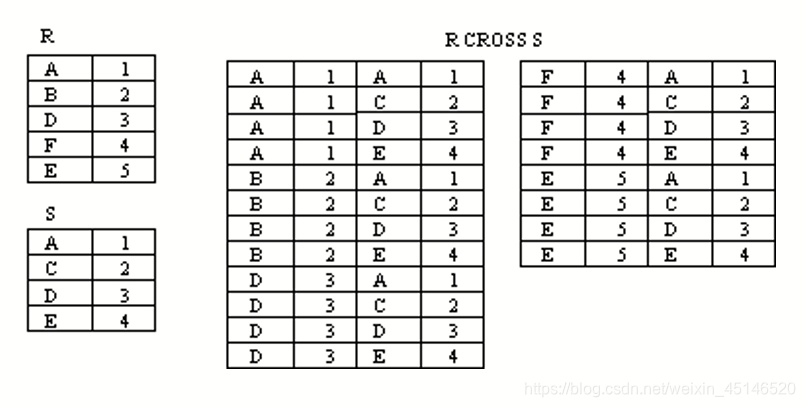

cartesian product (卡迪尔积)(cross product)

Assuming R has n attributes and S has m attributes respectively,the cartesian product can be written as:
在这里插入图片描述
result of the above set operation is:
在这里插入图片描述
在这里插入图片描述
Duplicate tuples contain in ouput !!!

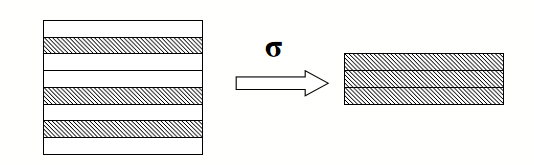

select operation

This operation retrieves a subset of tuples in a relation that satisfy a select condition.
在这里插入图片描述
such as : AGE=19 is a condition and student is a relation.

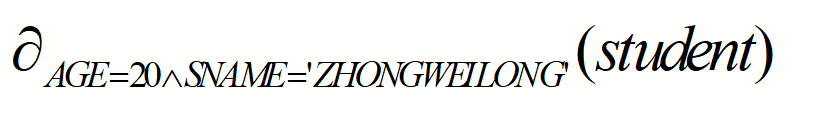

在这里插入图片描述 And two and more condition :

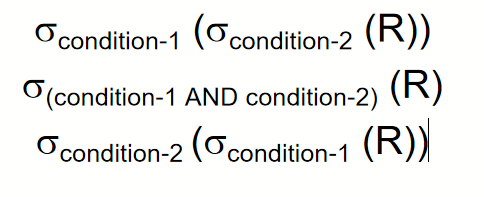

在这里插入图片描述 The selection operation is commutative. The below are equivalent.
在这里插入图片描述

projection operation

在这里插入图片描述在这里插入图片描述

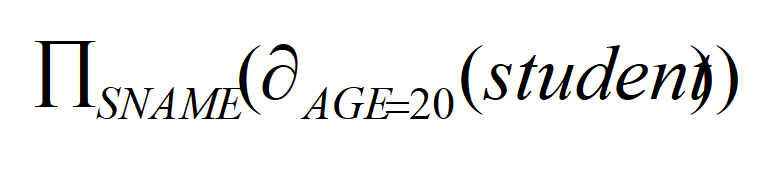

Now we can combine projection and selection.
在这里插入图片描述

RA’s join

链接一

Join

在这里插入图片描述

Return all tuples in RxS that satisfy the join condition. Derivation
在这里插入图片描述

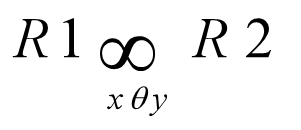

Theta Join(θ Join)

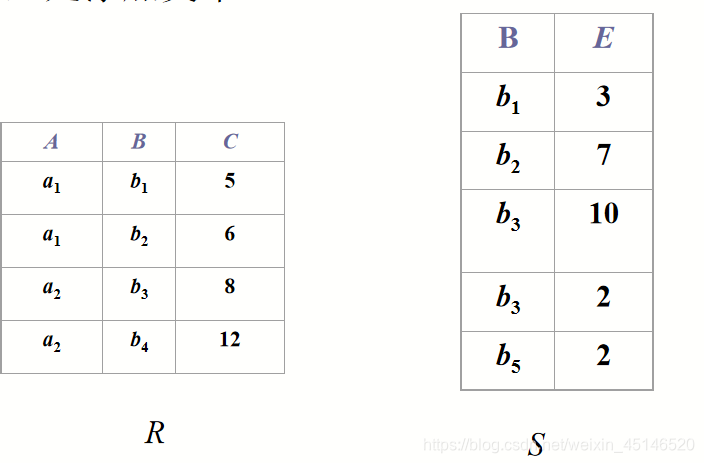

example:

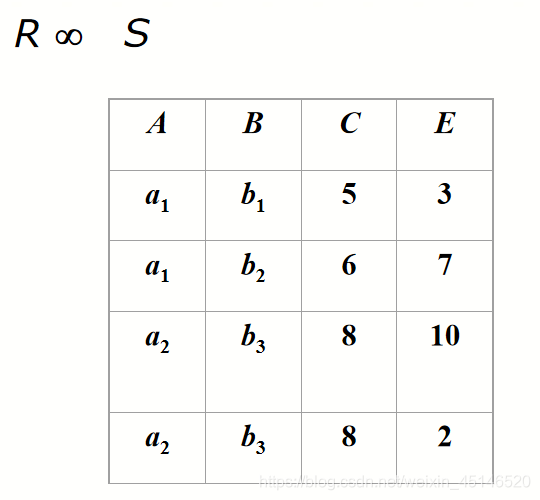

在这里插入图片描述

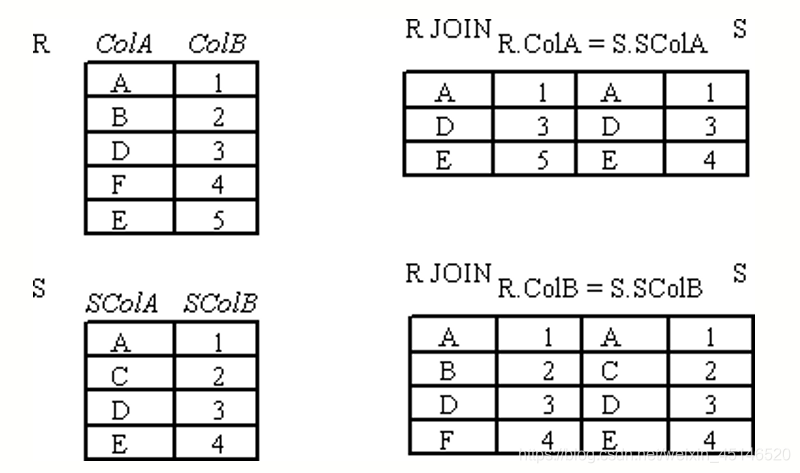

equi join(=)

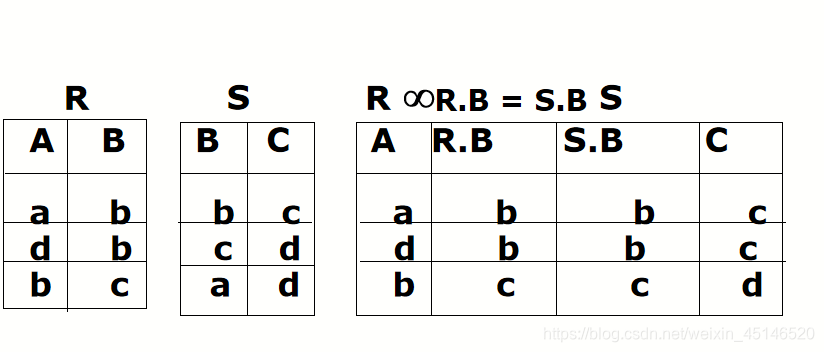

A join is called an equijoin if only equality operator is used in all join conditions.
在这里插入图片描述 < join condition> must always have = operation
在这里插入图片描述
在这里插入图片描述

natural join(*)

if an attribute is common both in two relation,we can remove one in the join natural join omit the condition
在这里插入图片描述
在这里插入图片描述
example (?)

在这里插入图片描述

Outer Joins (Special Case of EquiJoin)

How to keep dangling tuples in the result of a join?

left outer join

在这里插入图片描述
is similar to a natural join but keep all dangling tuples of R1.

right outer join

在这里插入图片描述
is similar to a natural join but keep all dangling tuples of R2.
在这里插入图片描述

full outer join

在这里插入图片描述
is similar to a natural join but keep all dangling tuples of both R1 and R2.
在这里插入图片描述

The advantages of outer join is to take the union of tuples from two relations that are not union compatible.

Division

Precondition: in A/B, the attributes in B must be included in the schema for A. Also, the result has attributes A-B
在这里插入图片描述
Another example is: Suppose we want to find all the students who have selected all courses (See Figure 3.19 Course Table ) provided by the school.
We can think of it as three steps:
1.We can obtain the NO. of all courses provided by the school by:
在这里插入图片描述
2.We can also find all SSN, cno pairs for which the student has selected courses by:
在这里插入图片描述
3.Now we need to find all students who selected all the courses. The divide operation provides exactly those students:
在这里插入图片描述

View

an interesting example

create table table1 (bm float )
insert into table1 values(5000)

create view TestViewCheckOption AS
select * from Table1 where Bm < 5003
with check option

update TestViewCheckOption set Bm = 5005
go

update error because 5005 can not appear in view with check option.

And a view can be changed by alter statement.

  ALTER VIEW view_name [(column_list)] [WITH ENCRYPTION]
  AS select_statement
  [WITH CHECK OPTION]

Specifying constraints

not null constraint

For item must contain a not null value

unique constraint

can not have same value.

Note that you can have many UNIQUE constraints per table, but only one PRIMARY KEY constraint per table.

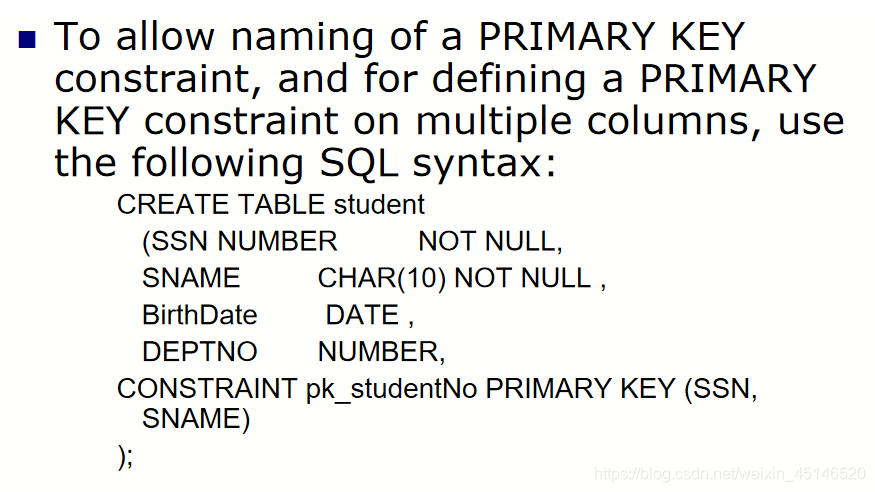

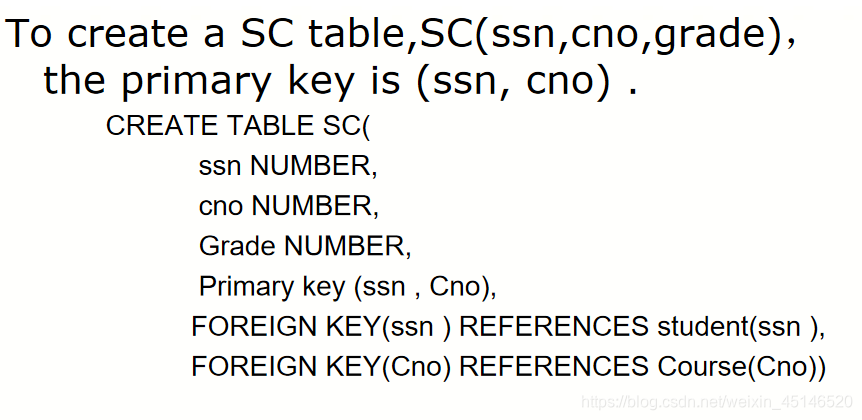

primary key constraint

A primary key must contain unique values and cannot contain NULL values. must have and only one
在这里插入图片描述

Foreign key constraint

two tables, one is referencing table, another is referenced table columns in referencing table must primary key or other candicate key in referenced table
在这里插入图片描述

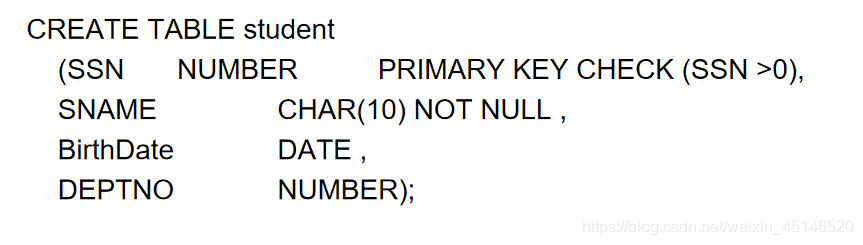

check constraint

limit the value range that can be placed in a column
在这里插入图片描述

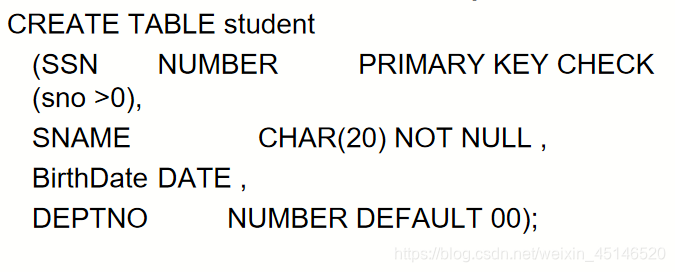

default constraint

insert a default value into column if no other value is specified
在这里插入图片描述

defalut can also use system function like getdate()
在这里插入图片描述

alter table add constraint

Add constraints to an existing table by using the ALTER TABLE statement.

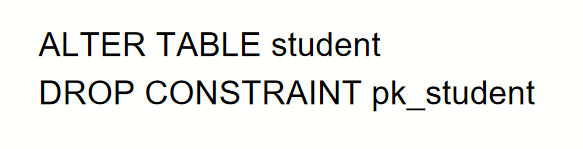

在这里插入图片描述 drop it
在这里插入图片描述

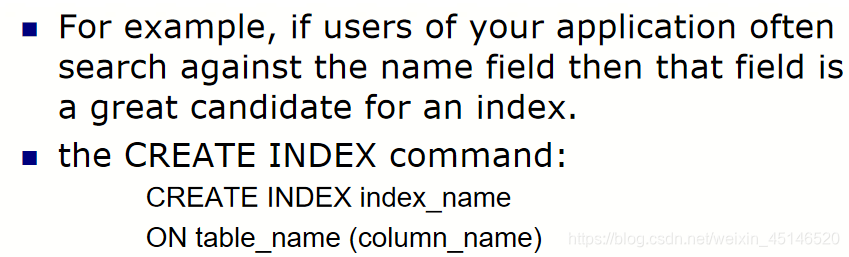

index

A database index enables the database application to find data quickly without having to scan the whole table.
在这里插入图片描述

select statement

在这里插入图片描述

The SELECT clause lists what columns to return. The FROM clause which indicates the table(s) from which data is to be retrieved. The WHERE clause specifies which rows to retrieve. The GROUP BY clause groups rows sharing a property so that an aggregate function can be applied to each group. The WHERE clause is applied before the GROUP BY clause. The HAVING clause selects among the groups defined by the GROUP BY clause. Because it acts on the results of the GROUP BY clause, aggregation functions can be used in the HAVING clause predicate. The ORDER BY clause specifies an order in which to return the rows. Without an ORDER BY clause, the order of rows returned by an SQL query is undefined.

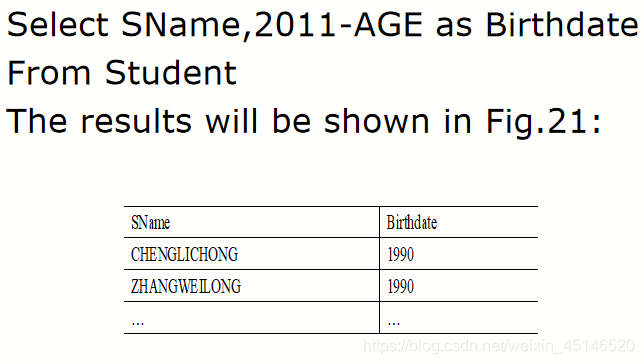

alias

shown with new name or new column
在这里插入图片描述

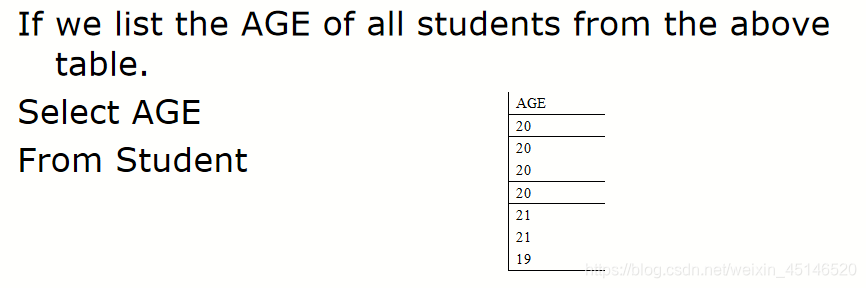

distinct

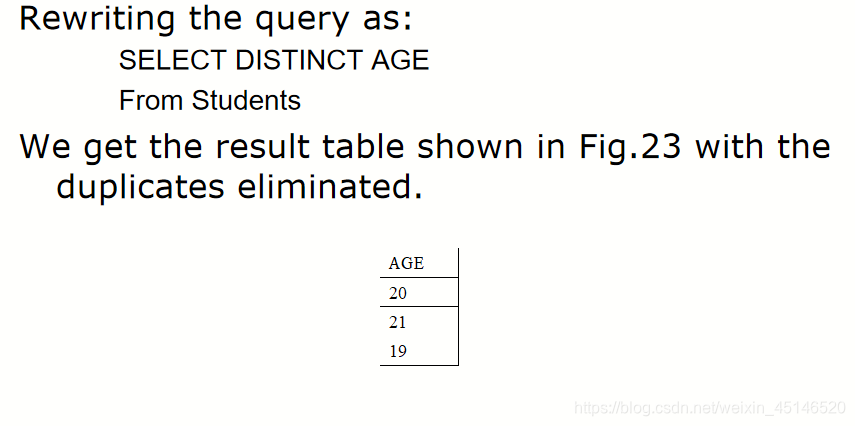

show only distinct rows in column
在这里插入图片描述
在这里插入图片描述

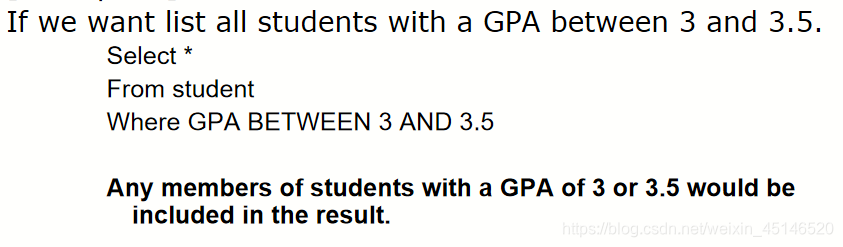

between or not between (range search)

get res of column in a range
在这里插入图片描述

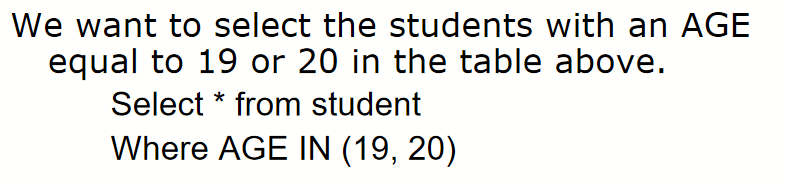

in or not in (set membership search)

specify multiple values in where clause
在这里插入图片描述

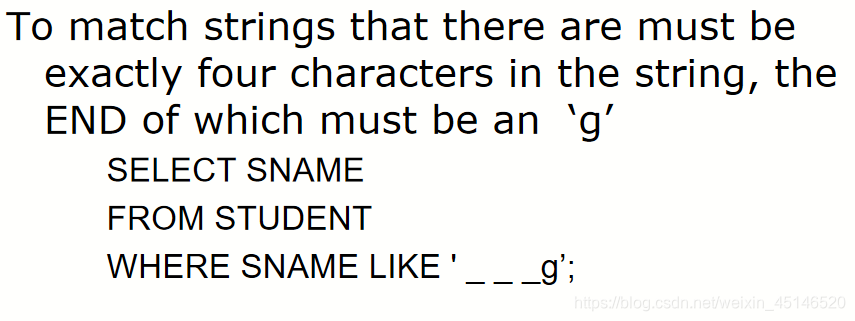

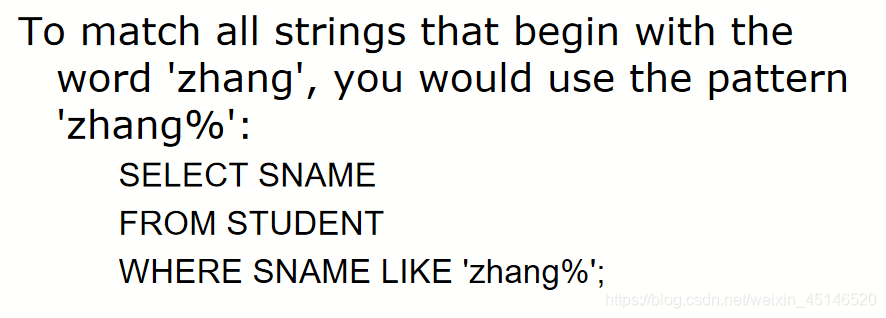

like or not like (pattern match search)

use for inexact condition search

The % wildcard matches zero or more characters of any type. The _ wildcard matches exactly one character of any type.
在这里插入图片描述
在这里插入图片描述

To match strings that there are at least one character between ‘a’ and ‘c’ .
SELECT SNAME
FROM STUDENT
WHERE SNAME LIKE ‘a_%c’;

escape character

If the search strings can include the wildcards(%,_) itself, we can use an escape character to represent the wildcards.
For example, to match the string ‘20%’, we can use :
Like ‘20#%’ ESCAPE ‘#’

is NULL or is not NULL

在这里插入图片描述

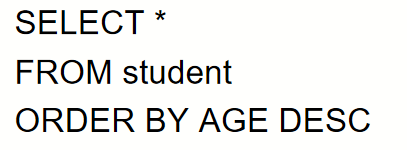

ordered by

sort
在这里插入图片描述
默认升序 ASC
降序 DESC

aggregate function (聚合函数)

COUNT
(1) count number of rows of tables

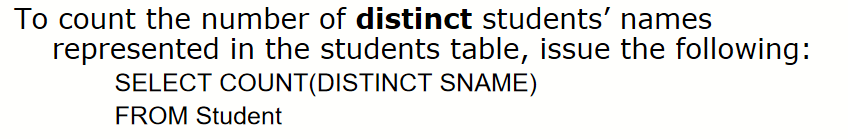

(2) count distinct values for a given column
在这里插入图片描述
在这里插入图片描述

distinct is not an argument in the function,it use before function is
applied.

AVG
在这里插入图片描述 MAX MIN SUM

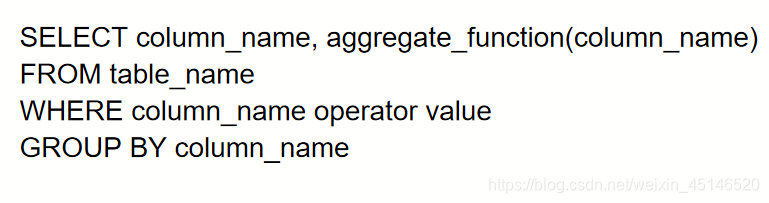

group by clouse

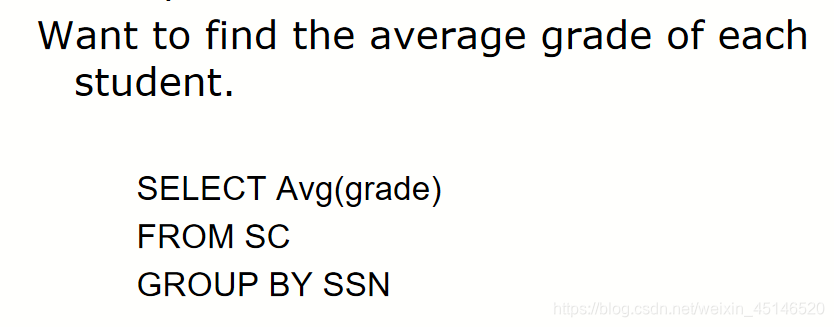

group the result-set by one or more columns with function
在这里插入图片描述
在这里插入图片描述

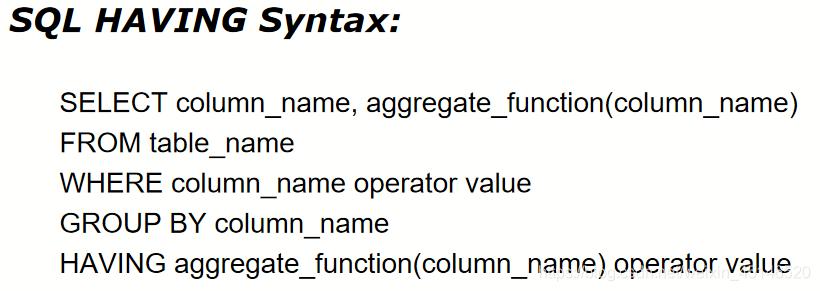

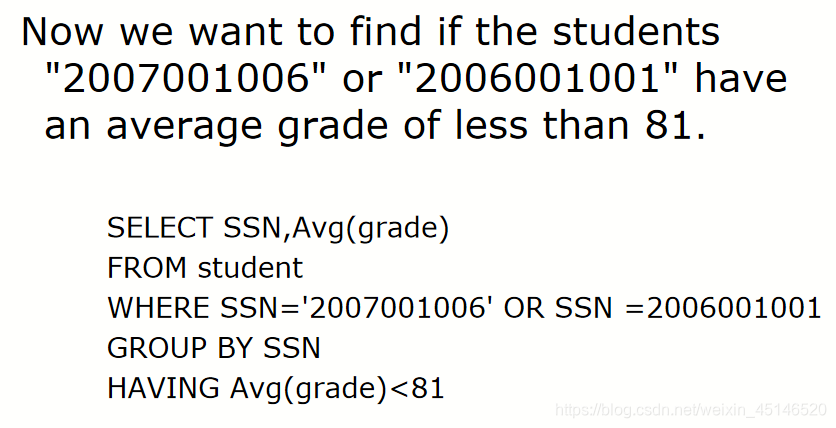

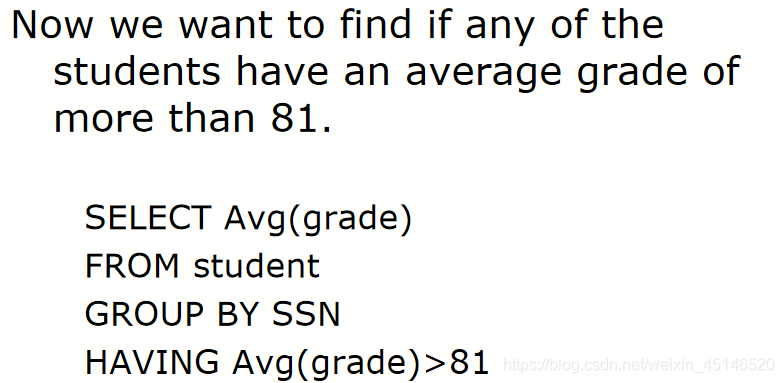

having clouse

The HAVING clause was added to SQL because the WHERE keyword could not be used with aggregate functions.
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

Multiple table (sql多表)

SQL allows us to query multiple tables in one SELECT-FROM-WHERE statement.

The SELECT and WHERE can refer to the attributes of any of the tables once we list each table in the FROM clause. ANSI standard SQL specifies four types of JOINs: INNER, OUTER, LEFT, and RIGHT. a table (base table, view, or joined table) can JOIN to itself in a self-join.

table student
在这里插入图片描述
table department
在这里插入图片描述

inner join

在这里插入图片描述
在这里插入图片描述

outer join

Rows are returned even when there are no matches through the JOIN critieria.

Left outer join

在这里插入图片描述
在这里插入图片描述

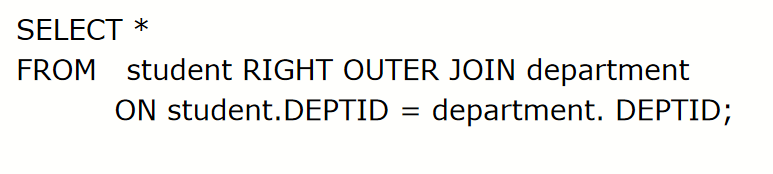

Right outer join

The RIGHT OUTER JOIN returns all rows from the second table.
在这里插入图片描述

Although 35 have no students we should list it too.
在这里插入图片描述

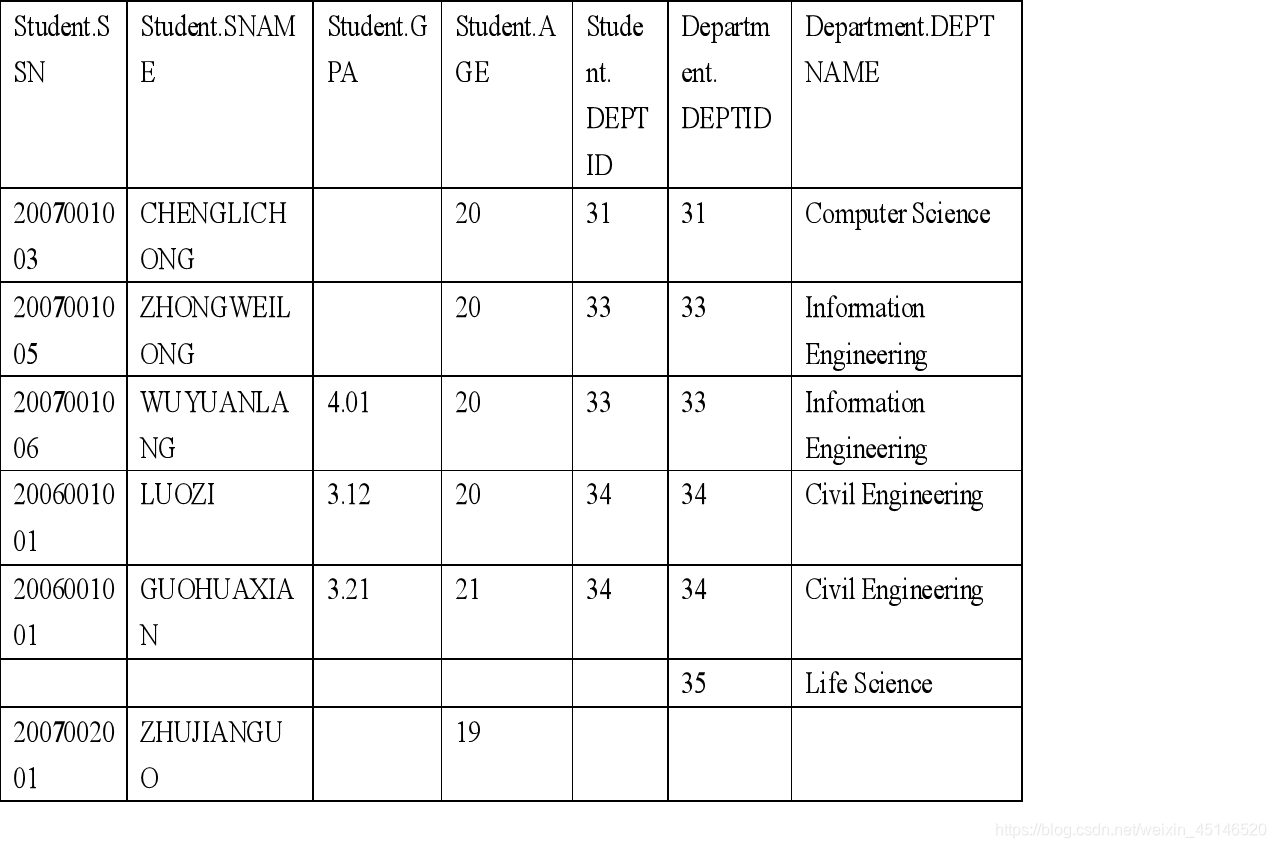

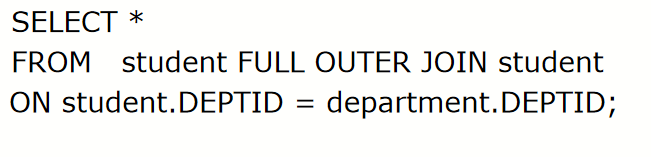

Full outer join

A full outer join combines the effect of applying both left and right outer joins.
在这里插入图片描述
在这里插入图片描述

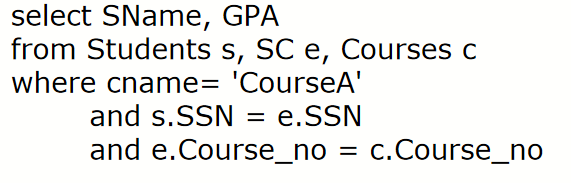

Alias

Table names can be abbreviated in order to simplify what is typed in with the query.
在这里插入图片描述

date format

date ------- to_char

select the name,job and date of hire of the employees in department 20(format the hiredate column using a picture MM/DD/YY).
Select ename “employee”,job, to_char(hiredate,’MM/DD/YY’) “HireDate”
From emp
Where deptno=20


Use a picture to format hiredate as DAY(day of the week),MONTH(name of the month),DD(day of the month) and YYYY(year).
Select to_char(hiredate,’DAY,MONTH,DD,YYYY’ ) “HireDate”
From EMP


Which employees were hired in March?
Select ename “Employee”,hiredate
From emp
Where to_char(hiredate,’MON’)=‘3月’


Show the weekday of the first day of the month in which each employee was hired.
Select ename “employee”,hiredate,to_char(trunc(hiredate,’month’),’day’)
From emp

trunc

1 trunc用于对值的截断。用法有两种:sysdate=2010-10-20

    trunc(NUMBER)截断数字:trunc(n1,n2),n2表示要截断到哪一位。也可为负数,如:
    trunc(19.85)——>19; trunc(19.85,1)——>19.8; trunc(DATE)截断日期
    截取今天:trunc(sysdate,‘dd’)或trunc(sysdate)——》2012-03-24
    截取本周第一天:trunc(sysdate,‘d’)——》2012-3-18
    截取本月第一天:trunc(sysdate,‘mm’)——》2012-3-1
    截取本年第一天:trunc(sysdate,‘y’)——》2012-1-1

last_day and next_day

last_day求一个日期所在月的最后一天
next_day(日期,‘sun|mon|…|fri|sat’)从日期后的下一天开始找,如果与相应的星期满足,则返回满足条件的日期。
求一个月的最后一天
SQL> select last_day(sysdate) from dual;
下一个星期一的日期
SQL> select next_day(sysdate,‘mon’) from dual;
下个月的第一个星期五
SQL> select next_day(last_day(sysdate),‘fri’) from dual

set operation

链接一

union

在这里插入图片描述

union removes duplicate rows. union all keeps duplicate rows.

intersect

在这里插入图片描述

Minus

在这里插入图片描述

sub queries

在这里插入图片描述

comparison-operator

链接一

ALL – the comparison must be true for all returned values.
ANY – The comparison need only be true for one returned value.
IN may be used in place of = ANY.
NOT IN may be used in place of != ALL.
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

exists and not exists

在这里插入图片描述
在这里插入图片描述

insert

在这里插入图片描述

update

在这里插入图片描述
在这里插入图片描述

delete

在这里插入图片描述

scalar function(标量函数)

链接一


Trivial FD (平凡函数依赖):

such as {stu,num,id}
{stu,num} -> { stu } is a Trivial FD
{stu,num} -> { id } is not a Trivial FD

数据库函数依赖和范式:

函数依赖及范式
1NF、2NF、3NF、BCNF
范式
范式练习题

attribute clouse (computing F+)

在这里插入图片描述

super key and primary

AB is a superkey of R since (AB)+ = ABCDE. Since A+ = A, B+ = BD, neither A nor B is a superkey. Hence ,AB is a candidate key.

one

for each pair AiAj, i != j
      if Ai or Aj is a candidate key
          then AiAj is not a candidate key;
      else compute (Ai Aj)+;
           if (AiAj)+ = A1 A2 ... An
               then (Ai Aj) is a candidate key;

two
在这里插入图片描述

Relation schema: R = (A, B, C, D, E)
F = {A->BC, CD->E, A->D, B->D, E->A}
(1)Find A+, B+, BC+
(2)Find Candidate keys of R
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
hence candicate keys are ?
在这里插入图片描述
A?B?D?E? BC? CD?
Candidate keys : A 、E、 BC、 CD

chase判断无损连接性算法

已知R<U,F>,U={A,B,C,D,E},
F={A→C,B→C,C→D,DE→C,CE→A},R的一个分解为R1(AD),R2(AB),R3(BE),R4(CDE),R5(AE),判断这个分解是否具有无损连接性。
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
超键,候选键,主键,外键:链接地址
一对一、一对多、多对多等关系: 链接地址

ER图

ER图解析
